Belzona 7111 (Marine Grade)

Specially designed to endure the physical and thermal shock common to marine environments.

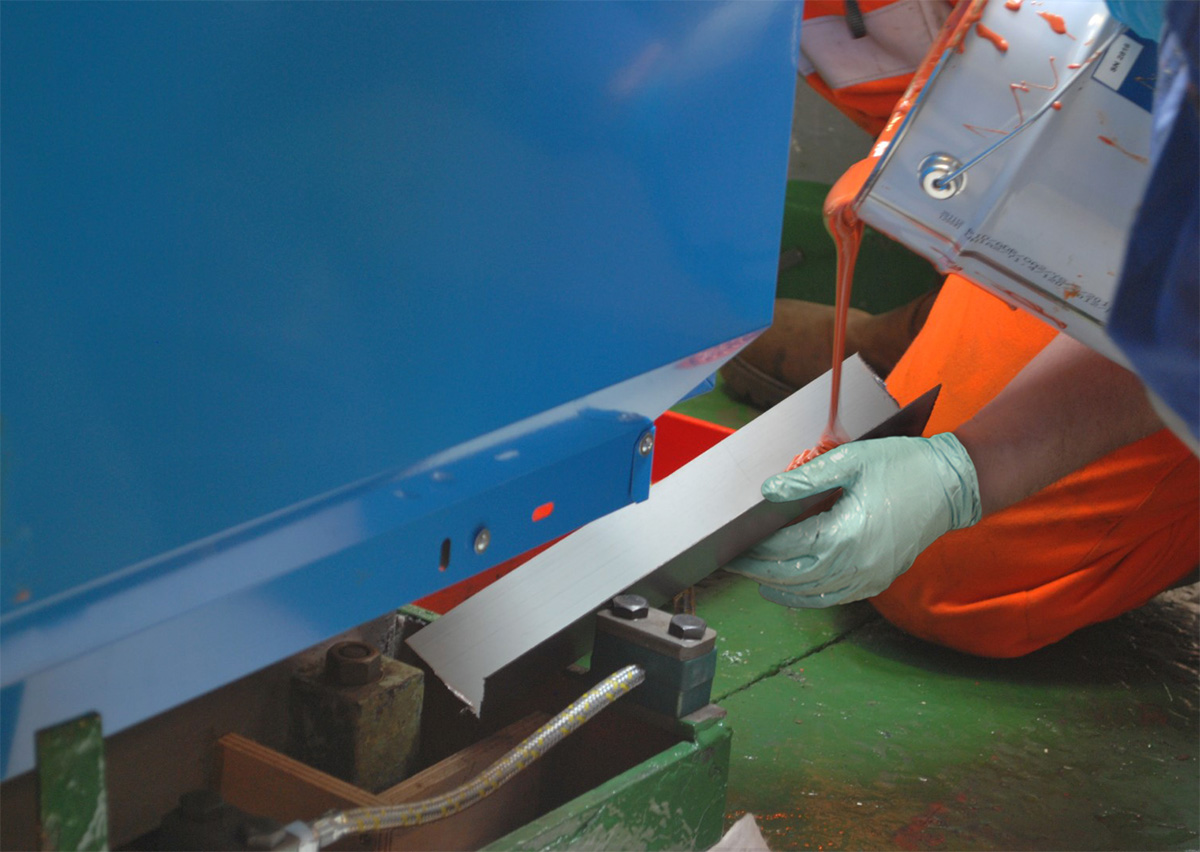

A cost-effective, 2-part, 100% solids chocking/grouting material designed to endure the physical and thermal shock common to marine environments. Belzona 7111 is pourable and is specially formulated to spread out evenly across irregular surfaces.

It is ideal for pouring foundations for heavy ship propulsion systems and other heavy equipment where alignment, and anchorage are essential.

Key Benefits:

Pressure, impact and vibration resistant
Provides precise equipment alignment
Dampens machine noise and vibration
Prevents loosening of threaded bolts
High load-bearing capacity is achieved for the structure
Reduced installation times
Does not require heat or special tools

Applications for Belzona 7111 include:

Propulsion and auxiliary machinery
Pumps
Compressors
Generators
Reduction gears
Stern tub and strut bearings
Pintle and rudder bearings
Crane rails
Bearing blocks
Anchor windlasses
Stern winches
Bow thrusters

Key technical data:
Cure Time	60°F/15°C - 48 hours 68°F/20°C - 24 hours 86°F/30°C - 12 hours
Volume Capacity (6.95kg)	4360 cu.cm (266 cu.in) per 6.95kg unit
Gel Time	45 minutes at (68°F/20°C)
Shelf Life	4 years when stored between 32°F/0°C and 86°F/30°C
Compressive Strength (ASTM D695)	14930 psi / 102.9 MPa
Tensile Strength (ASTM D638)	6410 psi / 44.2 MPa
Flexural Strength (ASTM D790)	9580 psi /66.1 MPa
Shear Strength (ASTM D732)	6590 psi / 45.4 MPa
Unit size	6.95kg
Availability*	Global
